Air injection vacuum blowers

Air injection vacuum blowers

Up to 6200 CFM

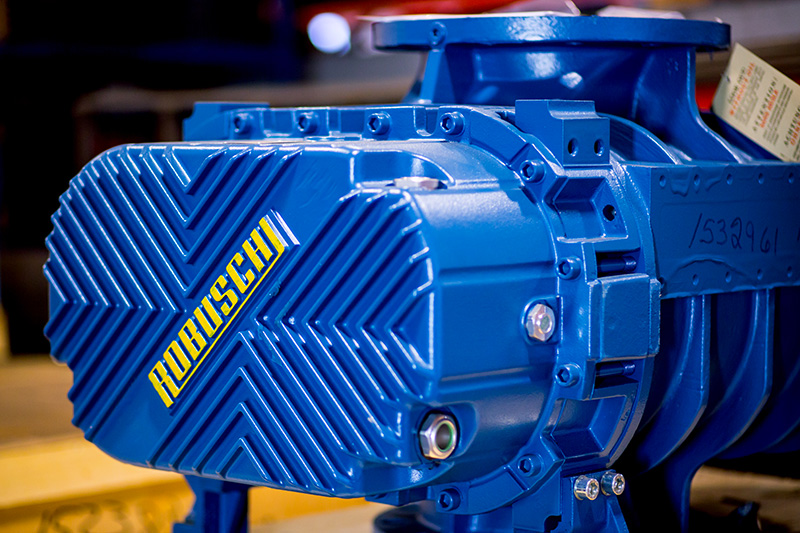

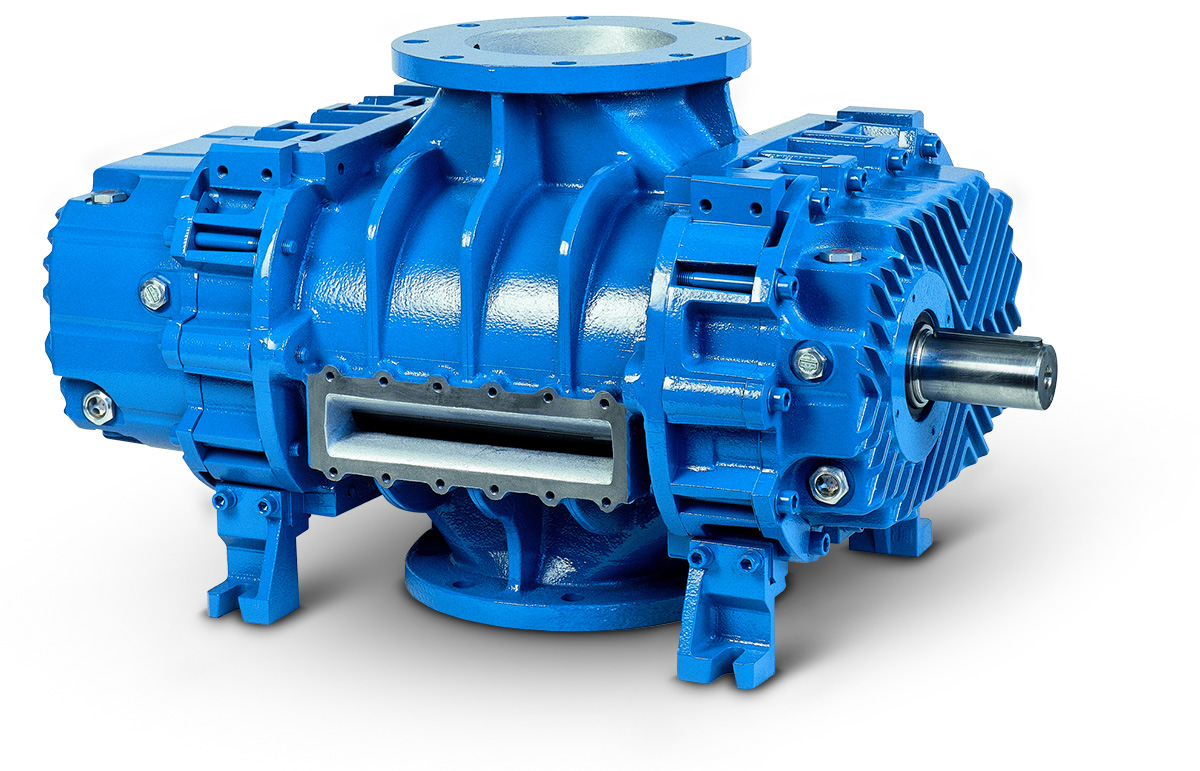

The RB-DV series consists of 3 lobe rotary blowers used as exhausters which makes it possible to reach a high compression ratio by means of a patented atmospheric air injection device ROBUSCHI that reduces overheating of the gas and the power absorbed by the blower. The main characteristics of these blowers are as follows:

  • Maximum vacuum 93% – 28’’Hg on a dead head;
  • Nominal capacity from 840 to 10,500 m3/h – from 494 CFM to 6200 CFM;
  • Suction pressure up to 100 mbar absolute / -900 mbar;
  • Gases and vapours can be handled;
  • No sliding parts, therefore no wear;
  • Safe operation and minimum maintenance;
  • No oil mist;
  • Available on request, RB-DV in the ATEX version.

Plans and documentation

Robuschi RBDV brochure
